Custom Design Carbon Graphite Products Resin Impregnated Graphite
The characteristics Feature:
Because of its excellent lubricity,heat resistance,chemical
resistance,graphite products used for machinery can be widely used
in high-temperature,liquid and lubricants area.Our products can
meet the demands of customers.
A. Lubricity: Layered structure of graphite materiaof small
friction coefficient and low wear.
B. Heat Resistance:The temperature enhancement has no effect to
their mechanical strength and sliding characteristics.
C. Chemical stability:Apart from some inorganic drugs(strong
acid)addition,resistant to chemical reaction.
D. Heat shock:Compared with metallic materials,the graphite
products is in small coefficient of thermal expansion,good thermal
conductivity and no significant change in the rapid temperature
changes.
E. Conducive to lightweight design:Small density compared with the
metallic materials,convenient to mechanical operation and reduction
of vibration and noise
Application:
Graphite parts mainly used in dry rotary vane compressors and
vacuum pumps;rotary compressor,screw compressor,fan,and the radial
axis with sealing ring and sealing rings;oil-free piston compressor
sealed with graphite piston and rod guide ring;mechanical
seals,axial end with ball valve seals;liquid medium transmission
with graphite bearings,seals,combination seals,rotary vane,rotar
and hub and so on.
Physical Properties of Carbon Graphite Material
| Category | Model | Impregnant | Shore Hardess | Flexural Strength | Compressive Strength | Porosity | Bulk Density | Thermal expansion coeffcient | Temp. |
| ≥ | `X | ≥MPa | `X | ≥MPa | `X | ≤% | g/cm3 | 10-6/℃ | ℃ |
| Graphite | M120 | - | 60 | - | 25 | - | 81 | - | 18 | 1.6 | 4 | 350 |
| M154 | - | 40 | - | 20 | - | 40 | - | 28 | 1.42 | - | 350 |
| M254 | - | 10 | - | 25 | - | 45 | - | 25 | 1.65 | 3.4 | 450 |
| Impregnated resin carbon graphite | M106H | Epoxy resin | 75 | 90 | 51 | 60 | 180 | 190 | 1.0 | 1.62 | 4.8 | 200 |
| M238H | 40 | 55 | 39 | 50 | 78 | 110 | 1.0 | 1.85 | 4.5 | 250 |
| M255H | 40 | 50 | 34 | 45 | 78 | 90 | 1.0 | 1.8 | 4.5 | 200 |
| M106K | Furan resin | 80 | 95 | 55 | 65 | 200 | 210 | 2.0 | 1.62 | - | 200 |
| M120K | 75 | 95 | 50 | 60 | 190 | 195 | 2.0 | 1.7 | | 200 |
| M154K | 60 | | 35 | | 70 | | 6.0 | 1.6 | | 200 |
| M158K | 80 | 90 | 54 | 60 | 200 | 210 | 1.2 | 1.65 | - | 200 |
| Impregnated metal carbon graphite | M106D | Antimony alloy | 75 | - | 55 | 65 | 170 | 190 | 3 | 2.2 | 5.0 | 500 |
| M120D | 70 | - | 50 | 60 | 140 | 160 | 3 | 2.2 | 5.0 | 500 |
| M254D | 35 | - | 35 | - | 65 | - | 3 | 2.2 | 4.5 | 500 |
| M120P | Copper alloy | 65 | - | 65 | - | 200 | - | 3 | 2.4 | - | 400 |
| Impregnated glass carbon graphite | M106R | Glass | 110 | - | 75 | - | 210 | - | 1.5 | 1.9 | 4.67 | 600 |
| M120R | 95 | - | 57 | - | 190 | - | 1.5 | 1.9 | 4.67 | 600 |
| M254R | 65 | - | 55 | - | 100 | - | 1.5 | 1.9 | - | 600 |
| M262R | 75 | - | 48 | - | 138 | - | 1.5 | 1.9 | - | 600 |
Physical Properties of Isostatic Graphite
 | Index | Bulk Density | Shore hardness | Resistivity | Flexural Strength | Compressive Strength | Thermal expansion coefficient | Ash |
| Category | | ≥g/cm3 | ≥HS | UΩ*m | ≥MPa | ≥MPa | 10-6/℃ | ≤ PPM |
| Cylinder | Grade A | 1.85 | 50 | 8-12 | 40 | 80 | 4.0 | 500/50 |
| Grade B | 1.8 | 45 | 8-12 | 35 | 70 | 3.8 | 500/50 |
| Grade C | 1.8 | 40 | 8-12 | 30 | 65 | 3.8 | 500/50 |
| Cuboid | Grade A | 1.85 | 55 | 8-12 | 45 | 90 | 4 | 500/50 |
| Grade B | 1.8 | 50 | 8-12 | 40 | 80 | 3.9 | 500/50 |
| Grade C | 1.8 | 40 | 8-12 | 35 | 70 | 3.8 | 500/50 |

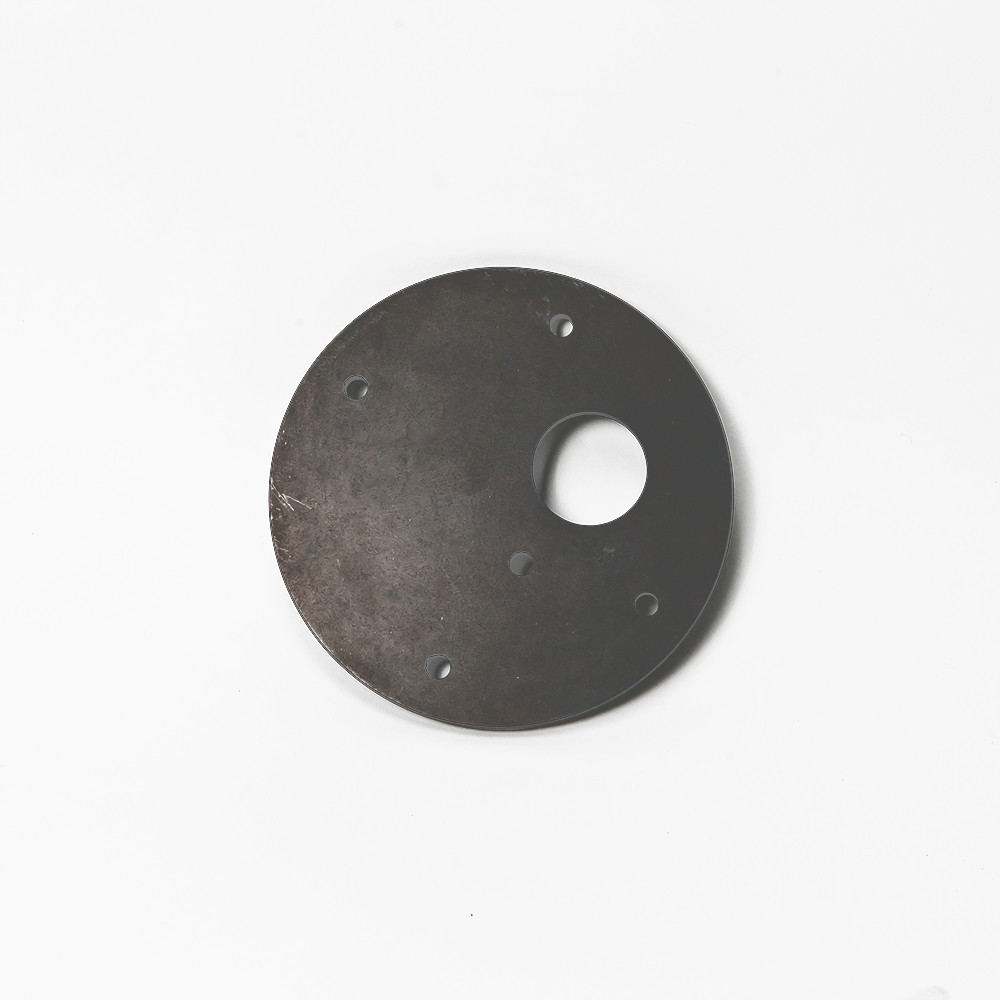

Photos of Product
DELIVERY TIME:
15-20 days after confirming order,detail delivery date should be
decided according toproduction season and order quantity
FAQ
What is your MOQ?
There is no limit for MOQ.
When can i get the price?
We usually quote within 24 hours after getting your detailed
requirements,like size, quantity etc.
Do you provide samples?
Yes, samples are available for you to check our quality. it will on
your expense.
What about the lead time for mass product?
The lead time is based on the quantity, 25-30 days for regular
products.
What is your terms of delivery?
We accept FOB, CFR, CIF, EXW, etc. You can choose the most
convenient way for you.
What can you buy from us?
Carbon graphite bushings & bearings, seals, rods, plates,vanes.
Are you trading company or manufacturer?
We are professional manufacturer of carbon graphite products.
