OEM ODM Carbon Graphite Bearings Abrasion Resistance High
Durability
Carbon graphite bearings are a type of bearing that is made from
carbon graphite material. These bearings are used in a wide range
of applications, including aerospace, automotive, and industrial
machinery.
Carbon graphite bearings have several advantages over traditional
metal bearings. They are self-lubricating, which means that they do
not require additional lubrication, reducing maintenance costs.
They also have a low coefficient of friction, which means that they can operate at high speeds and with less wear
and tear.
Another advantage of carbon graphite bearings is their ability to
operate in extreme temperatures. They can operate in temperatures
ranging from -200°C to 500°C, making them ideal for use in
applications where high temperatures are a concern.
Carbon graphite bearings are also corrosion resistant and can
withstand harsh chemicals, making them suitable for use in
corrosive environments. Additionally, they are lightweight and have
a high strength-to-weight ratio, making them ideal for applications
where weight is a concern.
Overall, carbon graphite bearings offer several advantages over
traditional metal bearings, making them a popular choice in many
industries.
Technical performance of material
| Category | Model | Impregnant | Shore Hardess | Flexural Strength | Compressive Strength | Porosity | Bulk Density | Thermal expansion coeffcient | Temp. |
| ≥ | `X | ≥MPa | `X | ≥MPa | `X | ≤% | g/cm3 | 10-6/℃ | ℃ |
| Graphite | M120 | - | 60 | - | 25 | - | 81 | - | 18 | 1.6 | 4 | 350 |
| M154 | - | 40 | - | 20 | - | 40 | - | 28 | 1.42 | - | 350 |
| M254 | - | 10 | - | 25 | - | 45 | - | 25 | 1.65 | 3.4 | 450 |
| Impregnated resin carbon graphite | M106H | Epoxy resin | 75 | 90 | 51 | 60 | 180 | 190 | 1.0 | 1.62 | 4.8 | 200 |
| M238H | 40 | 55 | 39 | 50 | 78 | 110 | 1.0 | 1.85 | 4.5 | 250 |
| M255H | 40 | 50 | 34 | 45 | 78 | 90 | 1.0 | 1.8 | 4.5 | 200 |
| M106K | Furan resin | 80 | 95 | 55 | 65 | 200 | 210 | 2.0 | 1.62 | - | 200 |
| M120K | 75 | 95 | 50 | 60 | 190 | 195 | 2.0 | 1.7 | | 200 |
| M154K | 60 | | 35 | | 70 | | 6.0 | 1.6 | | 200 |
| M158K | 80 | 90 | 54 | 60 | 200 | 210 | 1.2 | 1.65 | - | 200 |
| Impregnated metal carbon graphite | M106D | Antimony alloy | 75 | - | 55 | 65 | 170 | 190 | 3 | 2.2 | 5.0 | 500 |
| M120D | 70 | - | 50 | 60 | 140 | 160 | 3 | 2.2 | 5.0 | 500 |
| M254D | 35 | - | 35 | - | 65 | - | 3 | 2.2 | 4.5 | 500 |
| M120P | Copper alloy | 65 | - | 65 | - | 200 | - | 3 | 2.4 | - | 400 |
| Impregnated glass carbon graphite | M106R | Glass | 110 | - | 75 | - | 210 | - | 1.5 | 1.9 | 4.67 | 600 |
| M120R | 95 | - | 57 | - | 190 | - | 1.5 | 1.9 | 4.67 | 600 |
| M254R | 65 | - | 55 | - | 100 | - | 1.5 | 1.9 | - | 600 |
| M262R | 75 | - | 48 | - | 138 | - | 1.5 | 1.9 | - | 600 |
| Hot pressed graphite | M353 | - | 45 | - | 45 | - | 120 | - | 1.0 | 1.75 | - | 100 |
| M352 | - | 35 | - | 35 | - | 80 | - | 1.0 | 1.75 | - | 100 |
| M356 | - | 50 | - | 50 | - | 140 | - | 1.0 | 1.75 | - | 100 |
| M357 | - | 40 | - | 40 | - | 80 | - | 1.0 | 1.75 | 9.0 | 100 |
Chemical Resistance Of Mechanical Carbon Grapshite Material
| Medium | Mass Fraction % | Pure Carbon Graphite | Impregnated Resin Carbon Graphite | Impregnated Metal Carbon Graphite | Hot Pressed Carbon Graphite |
| Phenoic | Epoxy | Furan | Antimony | Babbitt Alloy | Aluminm Alloy | Copper Alloy |
| Hydrochloric acid | 50 | + | 0 | + | 0 | ~ | ~ | ~ | ~ | 0 |
| Sulfuric acid | 50 | + | 0 | + | 0 | ~ | ~ | ~ | ~ | 0 |
| Sulfuric acid | 98 | + | 0 | ~ | + | ~ | ~ | ~ | ~ | 0 |
| Nitric acid | 50 | 0 | 0 | 0 | 0 | ~ | ~ | ~ | ~ | 0 |
| Nitric acid | concentrated | ~ | ~ | ~ | ~ | ~ | ~ | ~ | ~ | ~ |
| Acetic acid | 36 | + | + | ~ | 0 | ~ | 0 | 0 | 0 | 0 |
| Seawater | ~ | + | 0 | + | 0 | ~ | + | 0 | 0 | 0 |
| Benzene | 100 | + | + | 0 | + | + | + | + | + | + |
| Ammonia | 10 | + | 0 | + | + | + | + | + | ~ | 0 |
| Acetone | 100 | + | 0 | 0 | + | + | 0 | + | + | 0 |
| Urea | 70 | + | + | + | + | + | 0 | + | ~ | 0 |
| Motor oil | ~ | + | 0 | + | + | + | 0 | + | + | + |
| Gasoline | ~ | + | 0 | 0 | + | + | 0 | + | + | + |
| Remarks: | + is stable, 0 is normally, ~ is unstable |

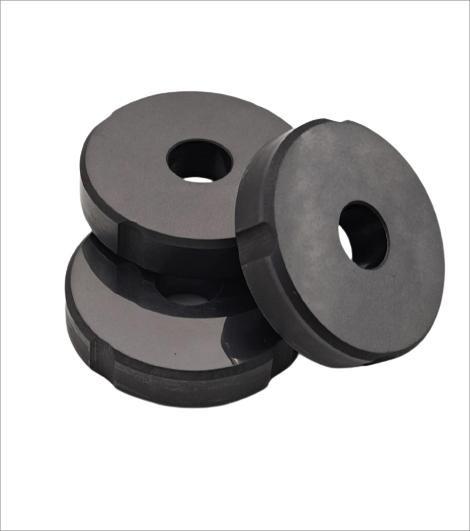

Product photos
FQA
Q1:Are you a manufacturing factory or a trading company?
A1: We are manufacturer for graphite products.
Q2: What's your MOQ?
A2: No limit to the quantity, we can offer the best proposal and
solution according to your condition.
Q3: What's your lead time for production?
A3: The lead time for normal products is 25-30 days. it need to be
negotiated for special cases.
Q4: Can I have a sample order?
A4: Yes, we welcome sample order for checking quality, it will be free
for our stock sample, but the delivery charge will on your expense.
